Home  /  Products  /  Tactile Indicators  /  Nouvel® Classic

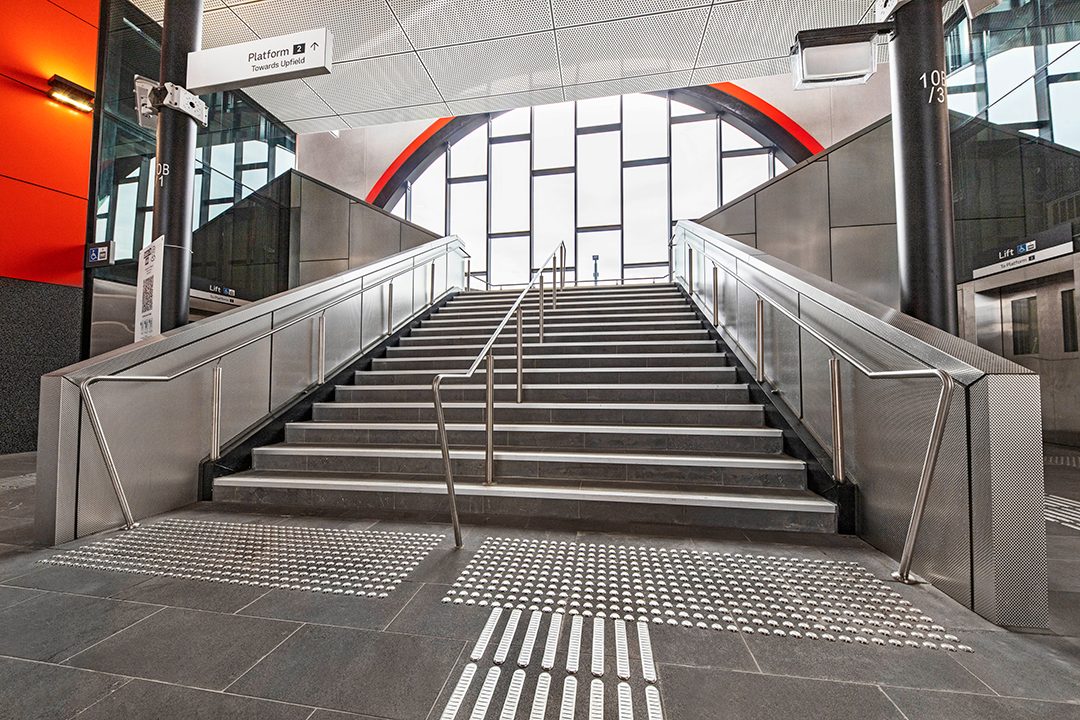

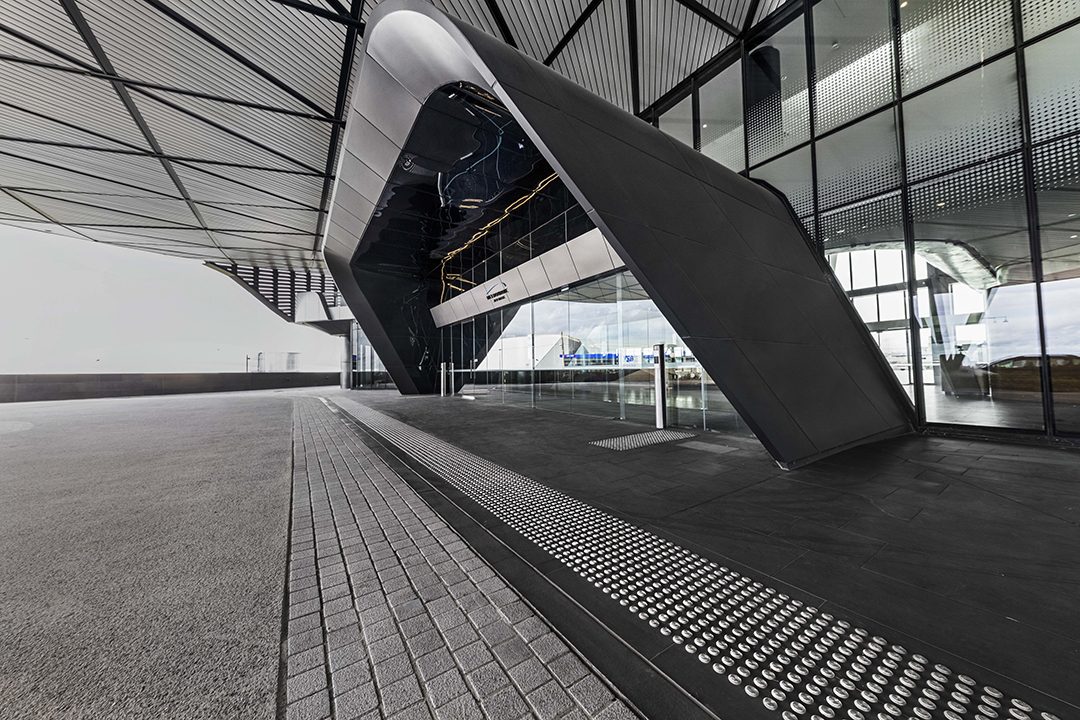

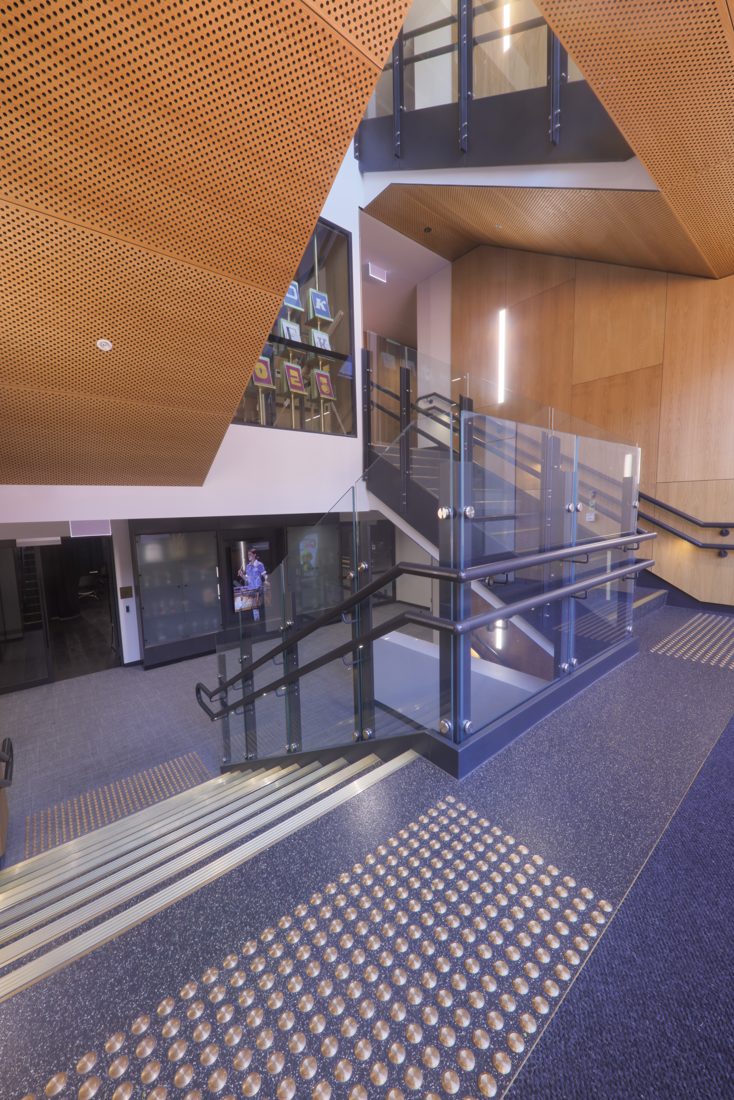

Nouvel Classic Stainless Warning TGSINouvel Classic Black Warning TGSINouvel Classic Brass Warning TGSIIn situ · Nouvel® ClassicIn situ · Nouvel® ClassicIn situ · Nouvel® Classic
Nouvel Classic Stainless Warning TGSINouvel® Classic
Tactile Ground Surface Indicators

Nouvel® Classic

AS 1428.4.1AS 1428.1AS 4586 · P5NCC 202210-Year Warranty

The flagship discrete tactile. Individually machined studs in solid Brass, 316 Stainless Steel, Black PVD, Champagne or Heritage sit flush on a concealed pressure-fit anchor, no adhesive, no cure time, so the area reopens to foot traffic the moment installation finishes. Specified where the floor is part of the architecture: stations, civic forecourts and premium lobbies. Wet-pendulum tested to AS 4586 (P5), with five finishes to achieve AS 1428.4.1 luminance contrast against light or dark substrates.

Luminance contrast required
45%
Minimum against the adjoining surface. Pick the tactile colour from the scale below.
Slip rating
P5
Wet pendulum, AS 4586. Highest of the five classes.
Finish
LRV shown as mean dry / mean wet, from the product data sheet. Swatches are an indicative colour reference, not a colour standard or product render. Order against the code, or request a sample below.
Configuration
$1.35 / each, ex GST
In stock · ships ex-Melbourne
Nouvel Classic Stainless Warning TGSI
Warning Calculator area → studs required
…
Based on AS 1428.4.1, 50mm centres.
10-year warrantyManufacturing defects, normal use
P5 slip ratingWet pendulum, AS 4586
Supply & installVIC / SA / WA
Specifications
Colour & luminance
Darker · low LRVLuminance reflectance valueLighter · high LRV
0
25
50
75
100
Heritage
10.49
Champagne
34.54
Black PVD
5.38
Stainless Steel
53.97
Brass
56.60
Black PVD1111115.38/ 4.77
Stainless Steel11111353.97/ 50.11
Brass11111256.60/ 51.06
Tap any colour to see the LRV an adjoining surface must reach for the 45% luminance contrast required under AS 1428.1.
Figures are mean dry LRV from the product data sheet. Luminance contrast is measured between the tactile and the surface around it, so the working rule is: the further apart the two sit on this scale, the more contrast you get. Nouvel Classic is specified at a minimum of 45%. Confirm the figure for your substrate before you specify.
Applicable Substrates
StoneCeramicConcreteMasonryTimberVinylAsphaltExposed AggregateCarpet Tile Don’t see your substrate? Contact us
Downloads
Product Data Sheets
PDFNouvel® Classic Discrete - Product Data Sheet578 KBDownload ↓PDFNouvel® Classic Discrete Directional - Product Data Sheet143 KBDownload ↓
Test & Compliance
PDFNouvel® Classic - Slip Resistance (P-rating, AS 4586)34 KBDownload ↓PDFNouvel® Classic - Non-Combustibility Statement (NCC C2D10(5))34 KBDownload ↓
CAD & BIM
RFANouvel® Classic - BIM File1.5 MBDownload ↓
Configure & Quote this product →
Trade Resources · Restricted Access

Slip Resistance Reports, Non-Combustibility Statements, Sample Warranty Certificates, and Installation Specifications. Available to registered builders, architects, surveyors and specifiers. Access granted within 24 hours of request.

Request Access →
