Home  /  Products  /  Tadao®  /  Tadao® Brass

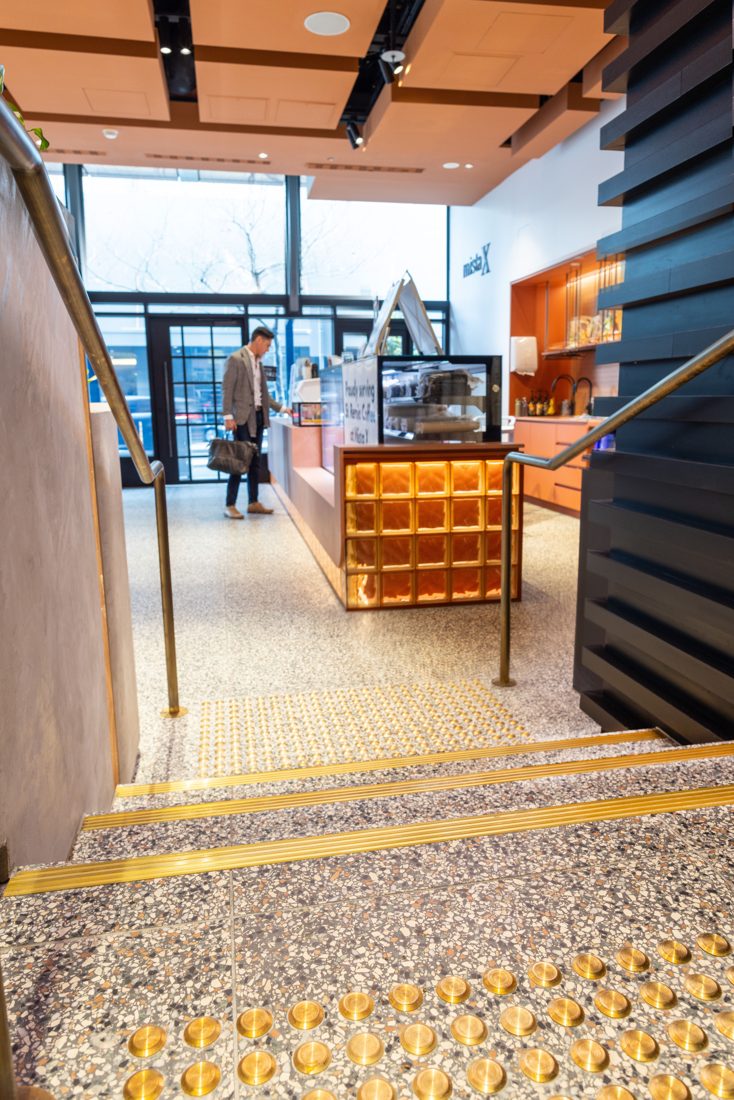

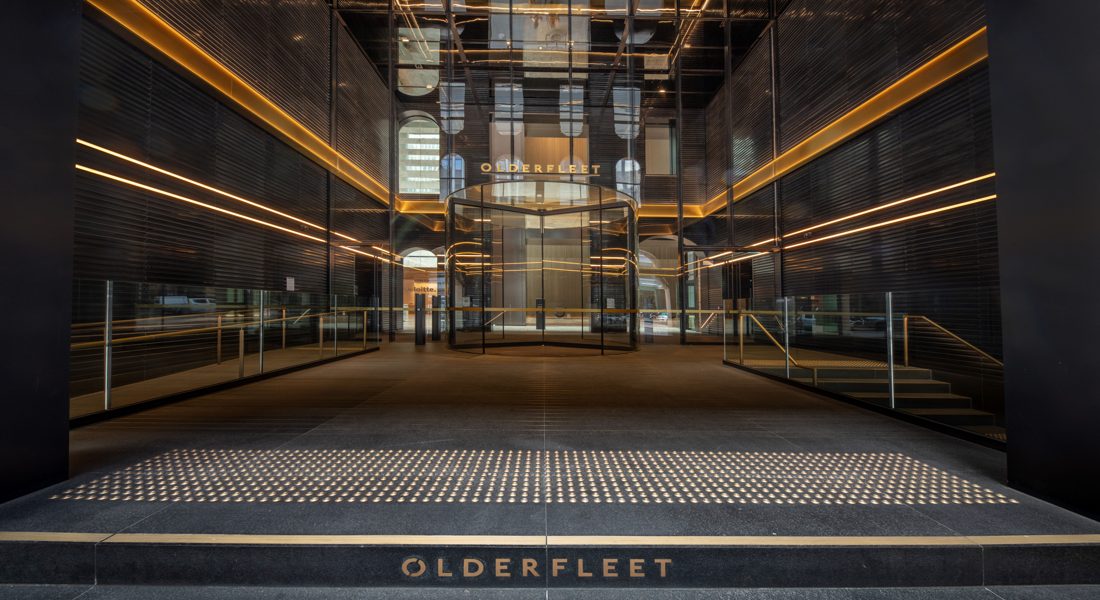

Product imageIn situ · Tadao® BrassIn situ · Tadao® Brass
AS 4586Tadao® Brass
Stair Nosing

Tadao® Brass

AS 4586AS 1428.1NCC 20225-Year Warranty

Tadao is one continuous piece of solid brass, the anti-slip pattern formed straight into the metal in Corrugated or Striped profiles: no insert to wear, lift or replace. Surface Mount and Recessed, for the projects where the stair detail is permanent. Tested to AS 4586; designed to AS 1428.1.

Luminance contrast required
30%
Minimum against the stair tread, AS 1428.1.
Slip rating
P5
Corrugated insert. Wet pendulum, AS 4586.
Pattern · Corrugated
Profile · SM
Searching...
Contact for Pricing & Availability
Made to order · 12-14 week lead time
5-year warrantyManufacturing defects, normal use
P5 slip ratingWet pendulum, AS 4586
Supply & installVIC / SA / WA
Colour & luminance
0
25
50
75
100
Tap a point to see the LRV an adjoining tread surface must reach for the 30% luminance contrast required under AS 1428.1.
Each insert shows mean dry / wet LRV; the scale plots the dry figure. Both are from the Korb product data sheet and the 2025 stair nosing brochure. Contrast is measured between the nosing and the surface around it: the further apart the two sit on this scale, the more contrast you get. A minimum of 30% luminance contrast is required under AS 1428.1. Confirm the figure for your tread before you specify.
Applicable Substrates
StoneCeramicConcreteMasonryTimberVinyl Don’t see your substrate? Contact us
Downloads
Product Data Sheets
PDFTadao® Brass Corrugated 10x50mm - Product Data Sheet442 KBDownload ↓ PDFTadao® Brass Corrugated 50x3mm - Product Data Sheet393 KBDownload ↓ PDFTadao® Brass Striped 10x50mm - Product Data Sheet422 KBDownload ↓ PDFTadao® Brass Striped 50x3mm - Product Data Sheet392 KBDownload ↓
Test & Compliance
PDFTadao® Brass - Slip Resistance (P-rating, AS 4586)33 KBDownload ↓ PDFTadao® - Non-Combustibility Statement (NCC C2D10(5))34 KBDownload ↓
CAD & BIM
DXFTadao® Brass - CAD Detail (section)44 KBDownload ↓ PDFTadao® Brass - CAD Detail Sheet125 KBDownload ↓
Configure & Quote this product →
Trade Resources · Restricted Access

Slip Resistance Reports, Non-Combustibility Statements, Sample Warranty Certificates, and Installation Specifications. Available to registered builders, architects, surveyors and specifiers. Access granted within 24 hours of request.

Request Access →
