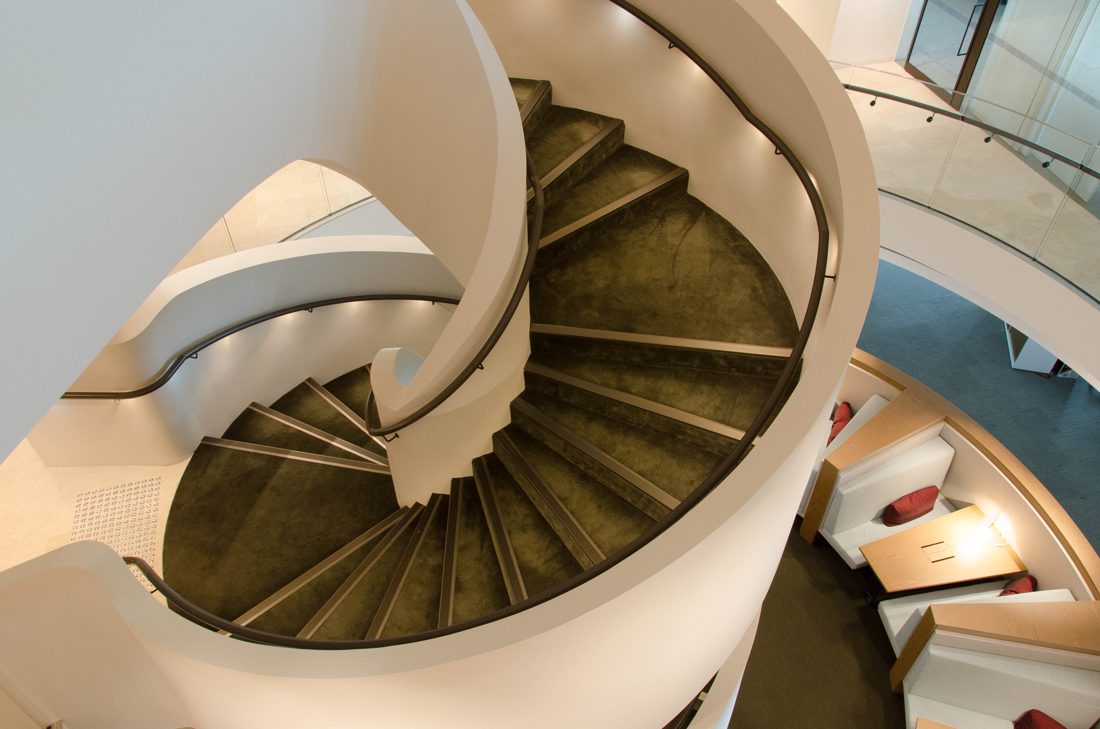

Venturi® Aluminium

Name: Venturi® Aluminium
Brand: Korb

AS 4586AS 1428.1NCC 20225-Year Warranty

The most adaptable nosing in the range. Venturi profiles cover surface-mount, recessed, floor-tile, carpet-underlay and rebated-tread conditions in anodised aluminium: one system for every stair in the building, in Silver, Black, Champagne and Heritage, with custom colours available on request. Replaceable inserts hold slip performance through refurbishment cycles. Tested to AS 4586; designed for AS 1428.1 and NCC luminance-contrast requirements.

Luminance contrast required

30%

Minimum against the stair tread, AS 1428.1.

Slip rating

Corrugated insert. Wet pendulum, AS 4586. Highest of the five classes.

Profile Type · SM

Carrier · Silver

Anodised body only. The carrier colour does not affect the slip rating or luminance contrast.

Insert Colour · Black

Sets the slip rating and the luminance contrast. Swatches are indicative, not a colour standard.

Insert Pattern · Corrugated

Searching...

$… / m, ex GST

Piece Specifications

Length (mm)

Qty

5-year warrantyManufacturing defects, normal use

P5 slip ratingWet pendulum, AS 4586

Supply & installVIC / SA / WA

Colour & luminance

100

Tap any insert colour to see the LRV an adjoining tread surface must reach for the 30% luminance contrast required under AS 1428.1.

Each insert shows mean dry / wet LRV; the scale plots the dry figure. Both are from the Korb product data sheet, for the corrugated insert. Contrast is measured between the nosing insert and the surface around it: the further apart the two sit on this scale, the more contrast you get. A minimum of 30% luminance contrast is required under AS 1428.1. Confirm the figure for your tread before you specify.

Applicable Substrates

StoneCeramicConcreteMasonryTimberVinylCarpet TileVinyl TileCarpet with UnderlayBroadloom Carpet Don’t see your substrate? Contact us

Downloads

Product Data Sheets

PDFVenturi® Aluminium Surface Mounted - Product Data Sheet299 KBDownload ↓ PDFVenturi® Aluminium Surface Mounted (L) - Product Data Sheet452 KBDownload ↓ PDFVenturi® Aluminium Recessed - Product Data Sheet246 KBDownload ↓ PDFVenturi® Aluminium Flooring Tile - Product Data Sheet304 KBDownload ↓ PDFVenturi® Aluminium Flooring Tile (L) - Product Data Sheet410 KBDownload ↓ PDFVenturi® Aluminium Carpet with Underlay - Product Data Sheet254 KBDownload ↓

Test & Compliance

PDFVenturi® Aluminium - Slip Resistance (P-rating, AS 4586)33 KBDownload ↓ PDFVenturi® - Non-Combustibility Statement (NCC C2D10(5))34 KBDownload ↓

CAD & BIM

DXFVenturi® Aluminium - CAD Detail (section)45 KBDownload ↓ PDFVenturi® Aluminium - CAD Detail Sheet132 KBDownload ↓

Configure & Quote this product →

Trade Resources · Restricted Access

Slip Resistance Reports, Non-Combustibility Statements, Sample Warranty Certificates, and Installation Specifications. Available to registered builders, architects, surveyors and specifiers. Access granted within 24 hours of request.

Request Access →
