Home  /  Products  /  Venturi®  /  Venturi® Brass

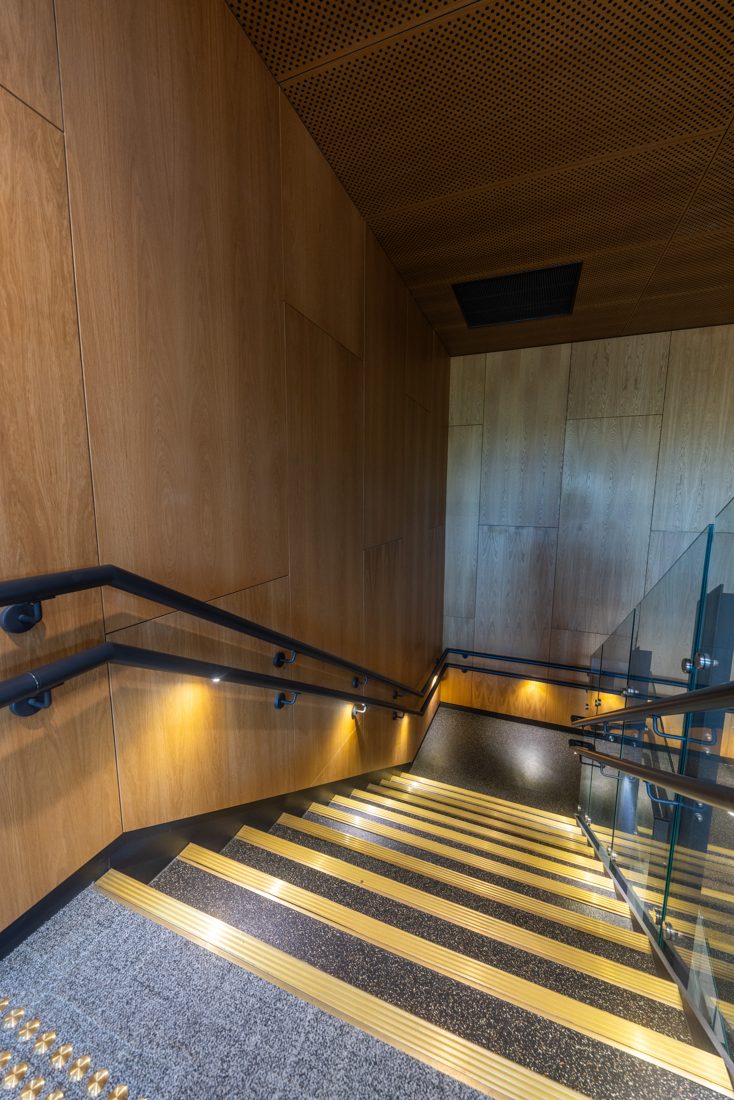

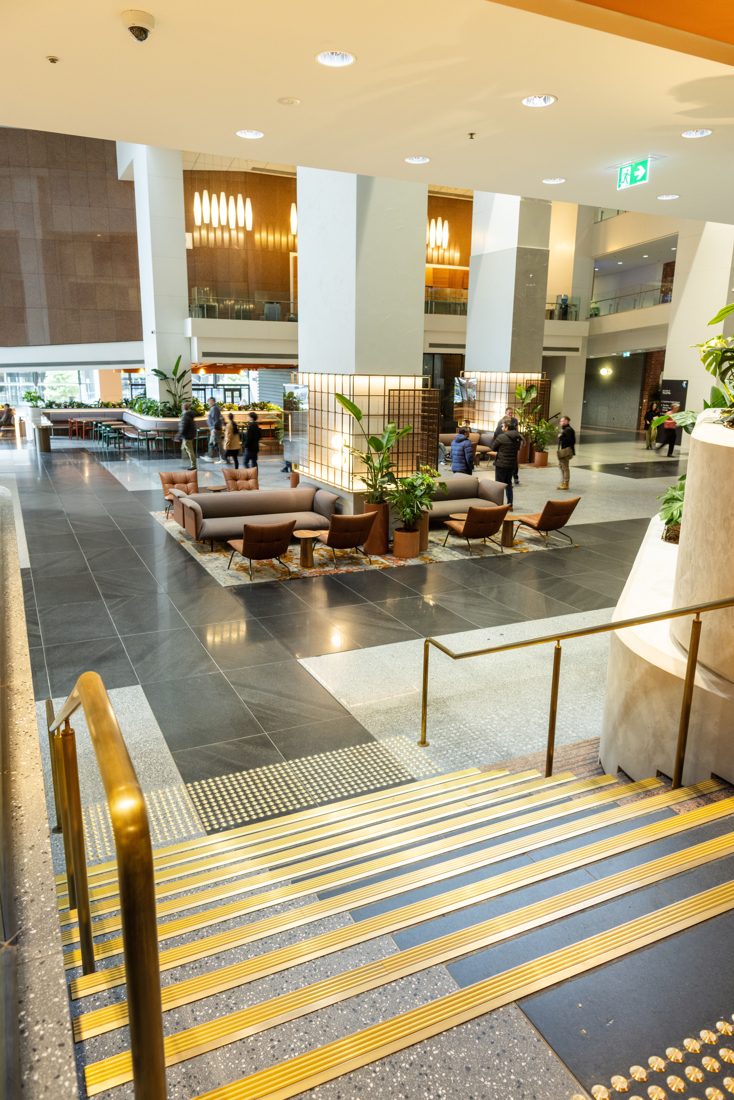

Product imageIn situ · Venturi® BrassIn situ · Venturi® Brass
AS 4586Venturi® Brass
Stair Nosing

Venturi® Brass

AS 4586AS 1428.1NCC 20225-Year Warranty

Venturi is the profile system: one nosing family covering surface-mount, recessed and transition conditions, here in solid brass with Corrugated or Striped insert patterns. Specify a single range across an entire stair package without compromising any tread condition. Tested to AS 4586; designed to AS 1428.1.

Luminance contrast required
30%
Minimum against the stair tread, AS 1428.1.
Slip rating
P5
Corrugated insert. Wet pendulum, AS 4586.
Profile Type · SM
Insert · Brass
Insert Pattern · Corrugated
Searching...
Contact for Pricing & Availability
Made to order · 12-14 week lead time
5-year warrantyManufacturing defects, normal use
P5 slip ratingWet pendulum, AS 4586
Supply & installVIC / SA / WA
Colour & luminance
0
25
50
75
100
Tap a point to see the LRV an adjoining tread surface must reach for the 30% luminance contrast required under AS 1428.1.
Each insert shows mean dry / wet LRV; the scale plots the dry figure. Both are from the Korb product data sheet and the 2025 stair nosing brochure. Contrast is measured between the nosing and the surface around it: the further apart the two sit on this scale, the more contrast you get. A minimum of 30% luminance contrast is required under AS 1428.1. Confirm the figure for your tread before you specify.
Applicable Substrates
StoneCeramicConcreteMasonryTimberVinylCarpet TileVinyl Tile Don’t see your substrate? Contact us
Downloads
Product Data Sheets
PDFVenturi® Brass Surface Mounted - Product Data Sheet208 KBDownload ↓ PDFVenturi® Brass Recessed - Product Data Sheet415 KBDownload ↓ PDFVenturi® Brass Flooring Tile - Product Data Sheet218 KBDownload ↓
Test & Compliance
PDFVenturi® Brass - Slip Resistance (P-rating, AS 4586)33 KBDownload ↓ PDFVenturi® - Non-Combustibility Statement (NCC C2D10(5))34 KBDownload ↓
CAD & BIM
DXFVenturi® Brass - CAD Detail (section)45 KBDownload ↓ PDFVenturi® Brass - CAD Detail Sheet128 KBDownload ↓
Configure & Quote this product →
Trade Resources · Restricted Access

Slip Resistance Reports, Non-Combustibility Statements, Sample Warranty Certificates, and Installation Specifications. Available to registered builders, architects, surveyors and specifiers. Access granted within 24 hours of request.

Request Access →
