Home  /  Products  /  Nouvel® CarbTop

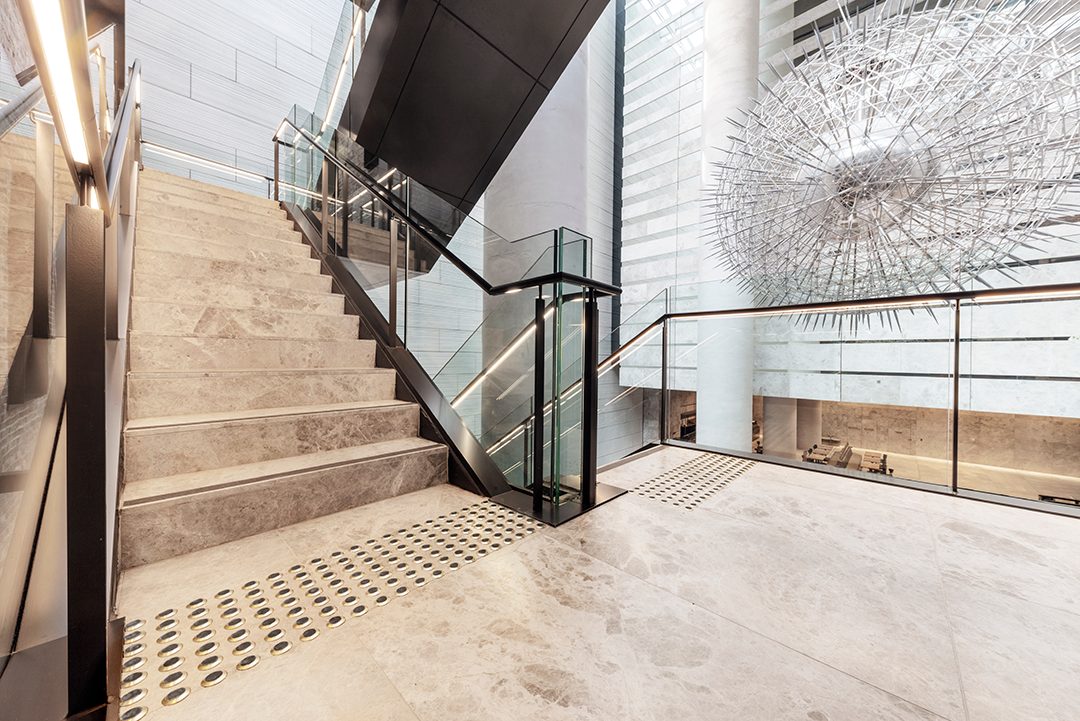

Nouvel CarbTop Black Infill Brass Warning TGSINouvel CarbTop Black Infill Stainless Warning TGSINouvel CarbTop Yellow Infill Stainless Warning TGSINouvel® CarbTop in situ
Nouvel CarbTop Black Infill Brass Warning TGSINouvel® CarbTop
Tactile Ground Surface Indicators

Nouvel® CarbTop

AS 1428.4.1AS 1428.1AS 4586NCC 20225-Year Warranty

A discrete tactile for the surfaces that get wet, steep or busy. A silicon carbide insert is set into a Brass or 316 Stainless stud body, pairing the grip of an abrasive surface with the finish of machined metal. Black and Yellow infills give two contrast paths against the substrate. The pick for ramps, exposed concourses and transport platforms where slip performance leads the specification. Tested to AS 4586; designed to AS 1428.4.1.

Luminance contrast required
60%
Minimum against the adjoining surface. Pick the tactile colour from the scale below.
Slip rating
P5
Wet pendulum, AS 4586. Highest of the five classes.
Variant Black / Stainless · LRV 3.61 dry / 3.11 wet
LRV shown as mean dry / mean wet, from the product data sheet. Swatches are an indicative colour reference, not a colour standard or product render. Order against the code, or request a sample below.
Configuration
$1.80 / each, ex GST
Out of stock · contact us for lead time
Nouvel CarbTop Black Infill Brass Warning TGSI
Warning Calculator area → studs required
…
Based on AS 1428.4.1, 50mm centres.
5-year warrantyManufacturing defects, normal use
P5 slip ratingWet pendulum, AS 4586
Supply & installVIC / SA / WA
Specifications
Colour & luminance
Darker · low LRVLuminance reflectance valueLighter · high LRV
0
25
50
75
100
Black
3.61
Yellow
35.93
Black1121213.61/ 3.11
Yellow11212835.93/ 33.21
Tap any colour to see the LRV an adjoining surface must reach for the 60% luminance contrast required under AS 1428.1.
Figures are mean dry LRV from the product data sheet. Luminance contrast is measured between the tactile and the surface around it, so the working rule is: the further apart the two sit on this scale, the more contrast you get. Nouvel CarbTop is specified at a minimum of 60%. Confirm the figure for your substrate before you specify.
Applicable Substrates
StoneCeramicConcreteMasonryTimberVinylAsphaltExposed AggregateCarpet Tile Don’t see your substrate? Contact us
Downloads
Product Data Sheets
PDFNouvel® CarbTop Composite Discrete Directional - Product Data Sheet125 KBDownload ↓PDFNouvel® CarbTop Composite Discrete Warning - Product Data Sheet214 KBDownload ↓
Test & Compliance
PDFNouvel® CarbTop - Slip Resistance (P-rating, AS 4586)33 KBDownload ↓
CAD & BIM
RFANouvel® CarbTop - BIM File704 KBDownload ↓
Configure & Quote this product →
Trade Resources · Restricted Access

Slip Resistance Reports, Sample Warranty Certificates, and Installation Specifications. Available to registered builders, architects, surveyors and specifiers. Access granted within 24 hours of request.

Request Access →
